Commitment to Quality Assurance & Inspection
At Brinkman Industrial & Defense, quality is not a department; it’s our operating system. For mission-critical components in the aerospace and defense sectors, there is no margin for error. Our comprehensive Quality Assurance program, managed from our Rochester, NY facility, is designed to ensure every part we ship meets or exceeds the most stringent customer specifications.
Brinkman Industrial and Defense operates and collaborates as a division, part of the larger Brinkman International Group organization. Listed below are our certifications.
Industry-Leading Certifications & Compliance
Adherence to the highest industry standards is fundamental to our business. Our certifications are a testament to our robust processes, commitment to continuous improvement, and our capability to handle sensitive and regulated defense projects.
- ISO 9001:2015 / AS9100D
- ITAR Registered
- CMMC / NIST (Level 2 – In process)
- SAM Registered
Our Advanced Inspection & Metrology Lab
To guarantee that every feature on a complex part meets its required tolerance, we utilize a suite of advanced metrology and inspection equipment. Our climate-controlled quality lab is equipped to provide the precise data needed to validate our manufacturing processes.

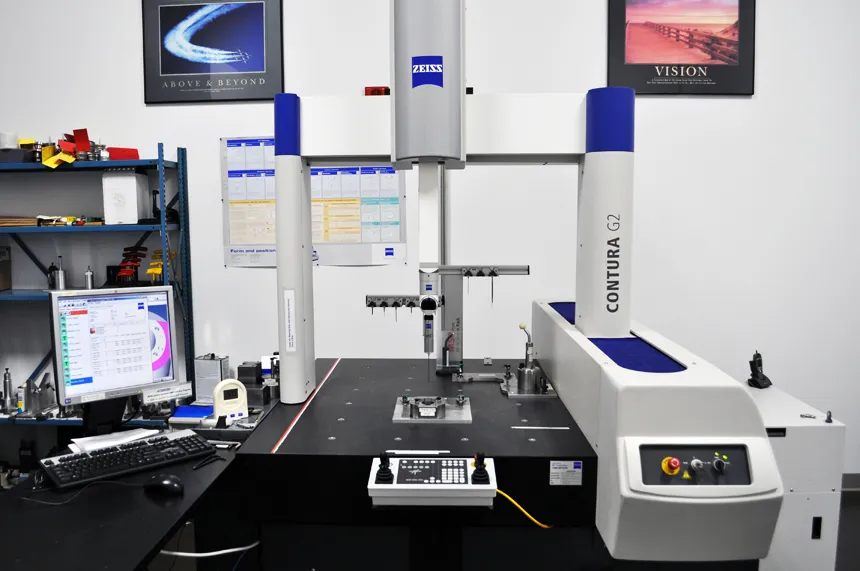

ZEISS Contura G2 Scanning CMM
Our flagship Coordinate Measuring Machines, the Zeiss Contura G2 automates the measurement of complex 3D components. With its high-speed scanning head and Calypso CAD software, it can quickly and accurately verify geometric dimensioning and tolerancing (GD&T) against your solid model, ensuring every critical feature is in perfect compliance.
- Working Range 30 x 40 x 20
- Glass scales with 8 millionths resolution, 2-micron accuracy (80 millionths)
- Articulating RD Probe receiver with 6-station probe changer
- Calypso CAD software
- Three (3) available

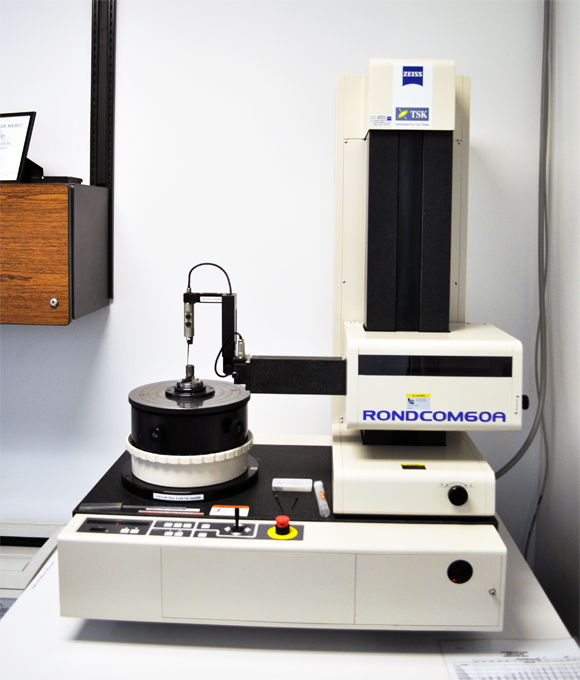

ZEISS/TSK Rondcom 60A Roundness Measuring Machine
Essential for high-performance rotating components, our Zeiss Rondcom machine measures roundness, cylindricity, and other form errors with millionths-of-an-inch accuracy. This capability is critical for verifying the precision of shafts, bearings, and other components where form is vital to function and longevity.
- Programmable 16″Dia. x 27″ Length Capacity
- 2 Millionths Roundness Accuracy
- Auto Tilt/Alignment
Pratt & Whitney Super Mic
This instrument serves as one of our primary in-house calibration standards. The Pratt & Whitney Super Mic provides absolute, direct-line measurement to ensure the gages and instruments used on our shop floor are calibrated to the highest degree of accuracy, guaranteeing measurement consistency across our entire operation.
- Bench Model 20 Millionths Digital Display/Resolution
- Used for gage calibration
Mahr Marsurf LD130
This advanced system allows us to precisely measure both the surface roughness and the contour profile of a component in a single pass. These parameters are critical for parts that require a specific texture for sealing, wear resistance, or aerodynamic performance. Its programmability ensures repeatable and accurate analysis of complex component profiles.
- Programmable surface roughness and contour machine
- Up to 130mm measurement length.

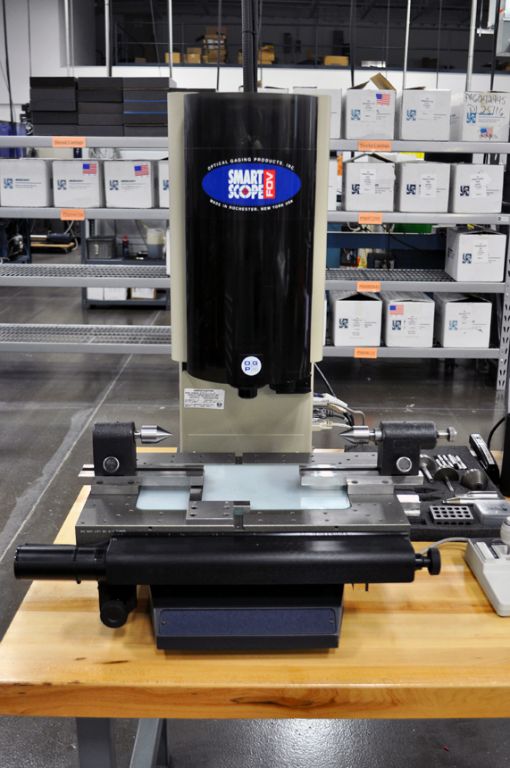

Optical Gaging Smart Scope Video Measuring System
The Smart Scope system provides automated, high-magnification, non-contact measurement. It is ideal for rapidly inspecting small, flexible, or complex components where traditional touch-probes are impractical. This technology allows us to verify critical edge profiles, hole diameters, and other fine features with exceptional accuracy.
- Programmable/Auto Inspect with 320 X Magnification
- 10 x 6 x 6 Travel Heidenhein Glass Scales with 10 millionths resolution

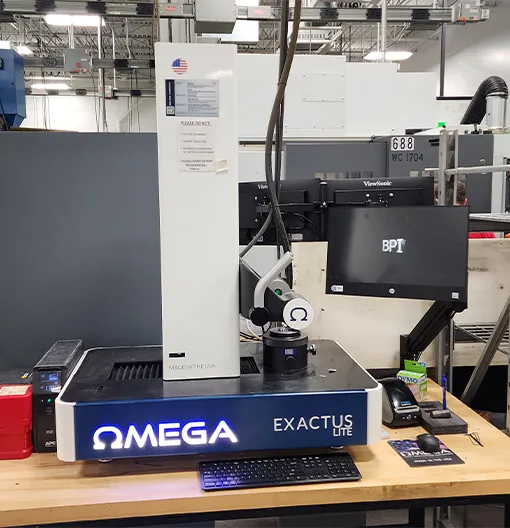

Omega TMM Exactus Lite Tool Presetter
A critical part of our process control, this tool presetter allows us to precisely measure our cutting tools offline. By setting and verifying tool geometries before they are loaded into a CNC machine, we significantly reduce setup times and eliminate the potential for error, ensuring the first part we machine is a perfect part.
Giddings & Lewis (Sheffield) Cordax Discovery Model D12 CNC/DCC Coordinate Measuring System
Measuring Range: 20 x 36 x 16 with measure max CAD Path
Single Touch Interface Software
Renishaw PH9 2 Axis Motorized Probe Head
Renishaw TP20 Touch Probe with Module Changer
Optical Gaging Smartscope Zip 250 Video Measuring System
Programmable/Auto Inspect with 320 X Magnification.
10 x 6 x 6 Travel Heidenhein Glass Scales with 10 millionths resolution
Two (2) Available
Optical Gaging Model QL-20 Contour Projector
Programmable/Auto Inspect 20” Screen
10-100x Magnification w/10 Millionths DRO’s
Three (3) Available
Marposs Electronic Sizing Display Columns
Analog & Digital Output
10 Millionths Resolution
Hand Held & Bench Mounted Sizing Rings for External/Internal Measurements
Sixteen (16) Available
Federal Air Gaging w/Digital Display Columns
Digital Output, 5 Millionths Resolution with Bench Mounted Sizing Stations for Internal Measurements
Six (6) Available
ZEISS Rondcom 40A Roundness Measuring Machine
6″ Diameter x 12″ Length Capacity
8 millionths Roundness Accuracy
Optical Gaging Model XL-14C Comparators
14” Screen
10-50x Magnification with DRO’s
Two (2) Available
Optical Gaging “Top Bench” Comparator
14” Screen
10-20x Magnification with DRO’s
Three (3) Available
Optical Gaging Model OQ-14B Comparator
Programmable 14” Screen
10-50x Magnification with DRO’s
Z-Mike 1200 Series Model 1201B Laser Micrometer
0-2” Capacity
20 Millionths Accuracy
Z-Mike 1200 Series Model 1202B Laser Micrometer
0-1” Capacity
20 Millionths Accuracy
Leica Microscopes w/fiber optic
Every Machine & work station
5x to 50x Magnification
Fifty-six (56) available
Leica Microscopes (QC/Inspection Area)
5x to 50x Magnification
Four (4) available
Federal Flatness Gage
20 Millionths Resolution Digital Indicator
18” x 18” Surface Plate
Leica 2-station Training Microscope
5x to 80x Magnification
Zeiss/TSK Surface (Roughness Tester) Model CM130A
Two (2) Available
Mitutoyo 13” .0001 Precision Height Stands
Two (2) available
Universal Model KK Concentricity Gages
Two (2) available
Niton X-Ray Material Analyzer Gun
Lighthouse Data Collection System
New Age Rockwell Hardness Tester
5 to 80x Beta Microscope w/ Digital Camera
Brown & Sharpe 26” Digit Height Plus
ITI Video Bore Scopes
Frequently Asked Questions about Manufacturing Quality
What does AS9100D certification mean for your customers?
AS9100D is the international Quality Management System standard for the Aviation, Space, and Defense industries. For our customers, it guarantees a high level of process control, full traceability of materials and procedures, and a commitment to risk management and continuous improvement on every project.
What is a CMM and how do you use it?
A CMM, or Coordinate Measuring Machine, is a device that measures the geometry of physical objects. We use our Zeiss CMMs to take thousands of precise measurement points on a machined part, creating a 3D map that we compare against the original CAD model to ensure every dimension is within its specified tolerance.
Are you equipped to handle ITAR-controlled defense projects?
Yes. Brinkman Industrial & Defense is an ITAR (International Traffic in Arms Regulations) registered company. Our facilities, systems, and personnel are fully compliant with the regulations required to manufacture and handle defense-related articles.
